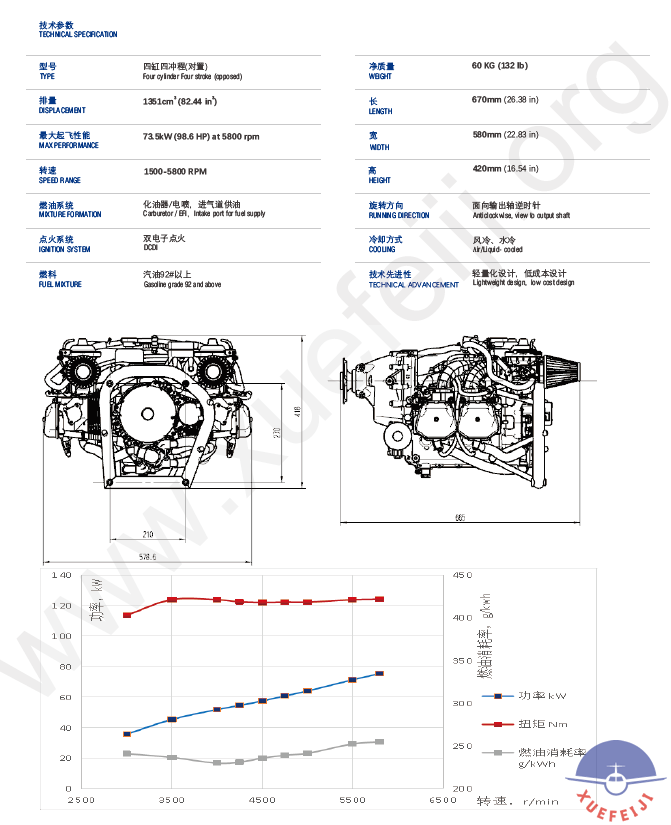

LXETECH F75 Aero Engine -100HP(carburetor 化油器版)

注：性能和安装尺寸对标Rotax912ULS 发动机

Note: Performance and mounting size reference Rotax912ULS engine

----Power73.5 KW

----四缸4-Cylinder

----四冲程、液/⽓冷对置汽缸发动机4-Stroke liquid-/air-cooled engine with opposed cylinders

----⼲式油底壳、压⼒润滑、耐久性好Dry sump forced lubrication

----双化油器、电喷2 Carburetors/EFI

----双冗余点⽕系统Dual electronic ignition

----电启动Electric starter

Description

四冲程活塞式发动机构型为⽔平对置，⽓缸体⻛冷+⽓缸盖⽔冷，湿式油底壳压压⼒润滑，TBO时间为2000h，具有低油耗、⾼可靠性、⾼稳定性、适应性强、功率重量⽐⼤等特点，为载⼈三⻆翼、轻型运动类⻜机、倾转旋翼机、600kg级⽆⼈机、双旋翼⽆⼈机等提供动⼒⽀持。

F75 four-stroke piston engine, the engine form is horizontally opposed, cylinder block air-cooled + cylinder head water-cooled, wet oil pan pressure lubrication, TBO time is 2000h, with low fuel consumption, high reliability, high stability, strong adaptability and high power to weight ratio,and can provide power support for manned delta wing, light sports aircraft, autogyro aircraft, 600kg class UAV, dual rotor UAV,etc.
