320跟330飞机外表都有这个三角形标志是什么意思
求大神解答?

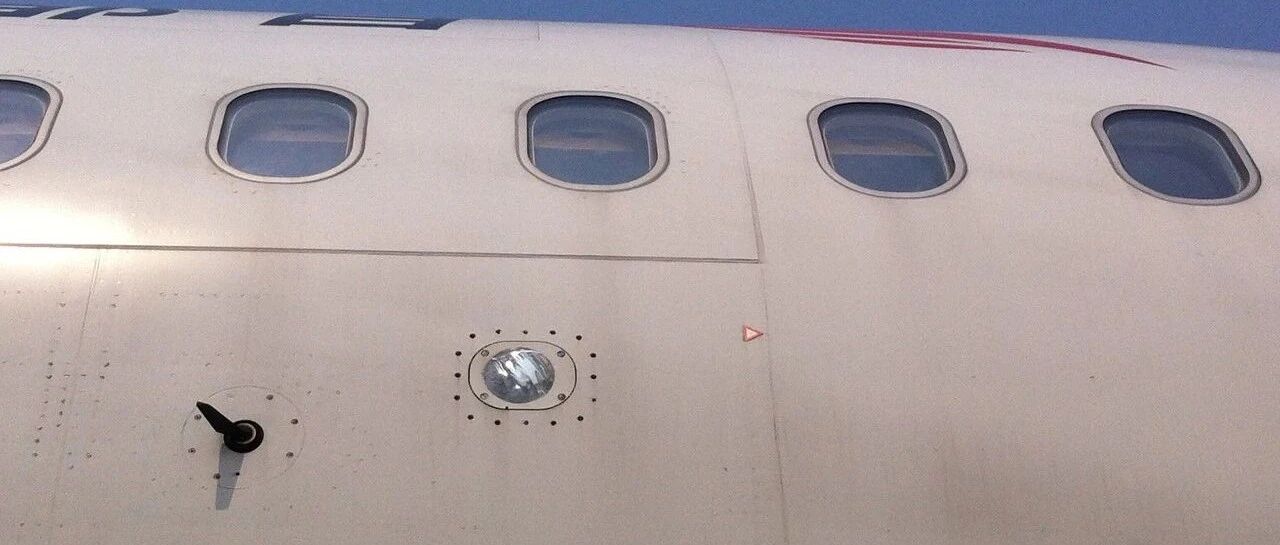

如图;320跟330飞机外表都有这个,而且还不止一处,好多处都有,三角形标志。波音飞机却没有,这干什么用的?
what's this?
图上这个东西是何物,有些飞机有,有些没有?作用是干撒的,手册那里可以找到。谢谢大佬们。
其实这两个东西都是配合检查和调平校准用的,一般是在出厂组装时或者飞机发生可能导致变形的不正常事件后,可以使用它们帮助进行检查。
在AMM Task 05-56-00-200-001中有详细说明:
Inspection/Check of the Leveling and Measurement after Abnormal Operation of the Aircraft
机身周围分部的红色轮廓的银色小三角形是:fuselage leveling triangle,给symmetry检查提供目视参考的。
The triangles are to assist in lineing up the fuselage sections in final assembly. They can also be used when the the symmetry of the aircraft needs checking, like after incidents where the aircraft may have gotten deformed.
而第二个问题里的东西,其实给symmetry检查提供工具安装的基座。
另外机身和机翼上还有一些孔,也是类似作用的,叫sighting rod hole:
可以参考AMM Task 08-22-00-200-001-A Precise Leveling:
至于客舱内的黑色三角形,是为机组人员而设的,标识着观察机翼的最佳位置:
完整的视频:
