发动机环境空气压力和温度传感器
Ambient Air Pressure and Temperature Sensors:AAPTS
ECU使用环境空气压力(APP)和温度(AAT)信息,以及管汇空气温度(MAT)和压力(MAP)来控制燃油流量。
1、如果空不是独立进气系统,安装在靠近空气过滤器位置。
2、独立进气系统安装在NACA进气口处。

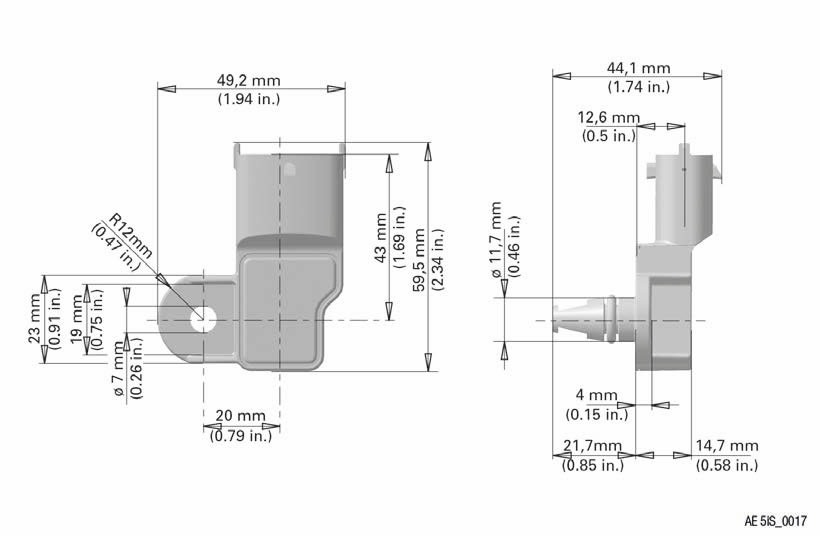

Maximum diameter of screw in the interior of the mounting hole: 6 mm (0.24 in). Only
mount sensor with a washer (Ø 10 mm (0.39 in) or with an adequate screw head diameter.
The maximum permissible pressure at the mounting flange may not exceed 20 N/mm2
(0.0029 psi).
