Rotax 912 fusebox保险盒Plug connection POWER (X3)接头型号:

型号：圆形塑料连接器206037-2+后盖206966-7

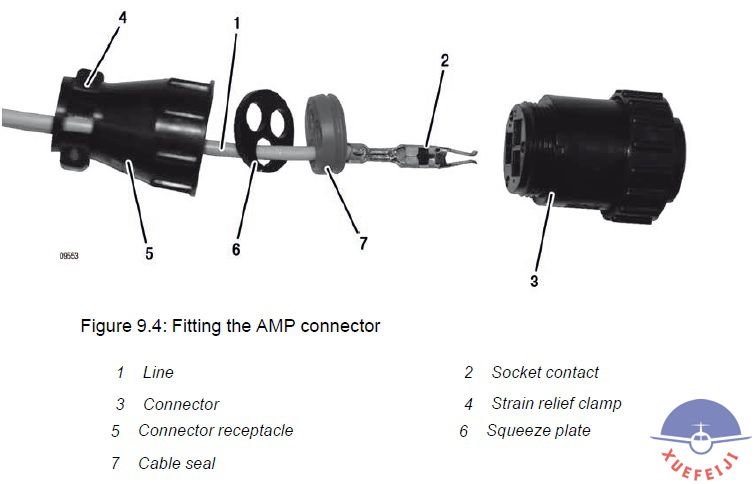

1.  Feed wires through the connector receptacle, squeeze plate and seal

(make sure wires are aligned with seal and numbered holes in connector).

2.  Strip insulation from wire.

3.  Install socket contact using suitable crimping pliers.

4.  Push the socket contact into the appropriate position in the AMP connector until it engages.

5.  Check for tight fit.

6.  Install connector receptacle and tighten.

7.  Install wire strain relief clamp with two screws.
