Rotax旧火花塞
Rotax 912IS的型号是 NGK DCPR8E(固体头为螺母)
Rotax 582 的型号是 NGK BR8ES
Rotax 912ULS 的型号是 NGK DCPR8E
Rotax 914 UL 的型号是NGK DR9EA

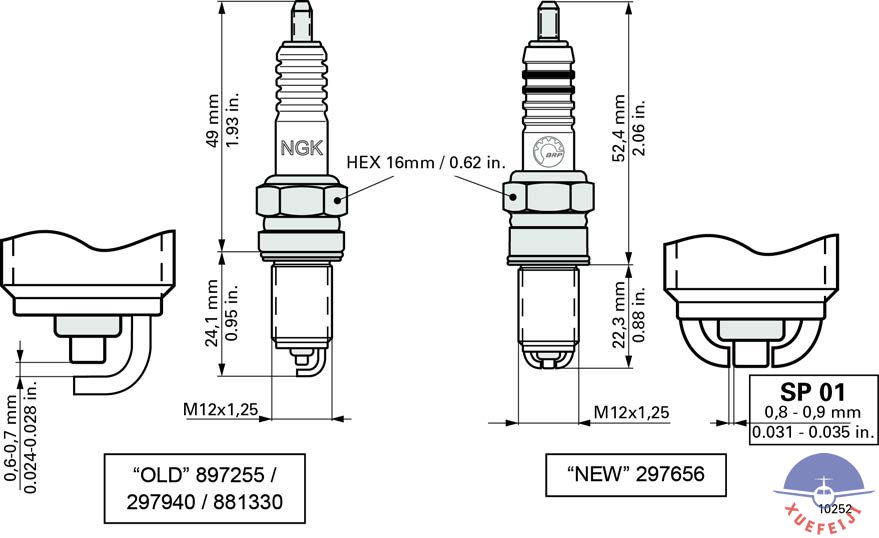

和新火花塞
Rotax912定制了火花塞,型号为297656

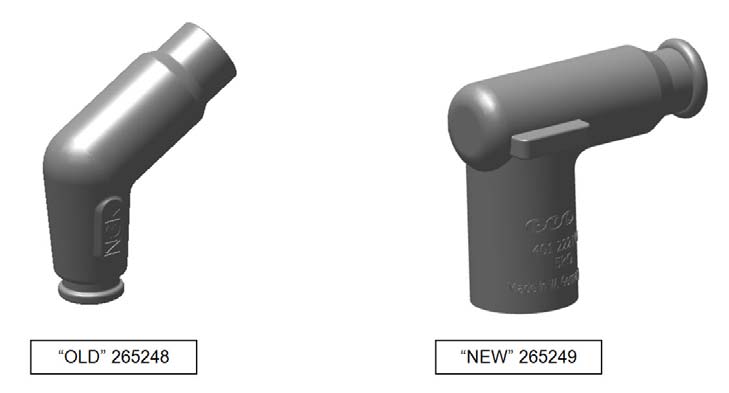

旧火花塞连接头和新火花塞连接头:
型号:265248和265249
火花塞间隙范围:
Electrode gap 电极间距 | Code | Min. | Max. | Wear limit |
SP01 | 0.8 mm 0.031 in. | 0.9 mm 0.035 in. | 1.1 mm 0.043 in. |
火花塞检查时间:
Points of inspection | Interval Operating hours | |
100 h | 200 h | |
Remove the spark plugs, clean, check electrode gap. Replace as required. 拆卸火花塞,清洁,检查电极间隙。 根据需要更换 | x | |
Replace spark plugs 更换火花塞 | x*) | x |
Check that the spark plug connectors fit tightly on the spark plugs. Minimum pull-off force is 30 N (7 lb). 检查火花塞连接器是否与火花塞紧密贴合。 最小拉拔力为30n (7 lb)。 | x | |
*) Use of leaded fuel more than 30% 使用含铅燃料超过30%的情况 |
注意:不允许调整火花塞间隙。 如果间隙测量超过允许的限度,火花塞必须更换。
Points of inspection | Interval Operating hours | |
100 h | 200 h | |
Remove the spark plugs, clean, check electrode gap. Replace as required. 拆卸火花塞,清洁,检查电极间隙。 根据需要更换 | x | |
Replace spark plugs 更换火花塞 | x*) | x |
Check that the spark plug connectors fit tightly on the spark plugs. Minimum pull-off force is 30 N (7 lb). 检查火花塞连接器是否与火花塞紧密贴合。 最小拉拔力为30n (7 lb)。 | x | |
*) Use of leaded fuel more than 30% 使用含铅燃料超过30%的情况 |
