dynon skyview双显示器实现同步的步骤
486
0

Use the following procedure to configure a SkyView network:

1. Push buttons 7+8 to access the SETUP MENU.

2. Navigate to the CONFIGURE… Page (SETUP MENU > SYSTEM SETUP > SKYVIEW NETWORK SETUP > CONFIGURE…).

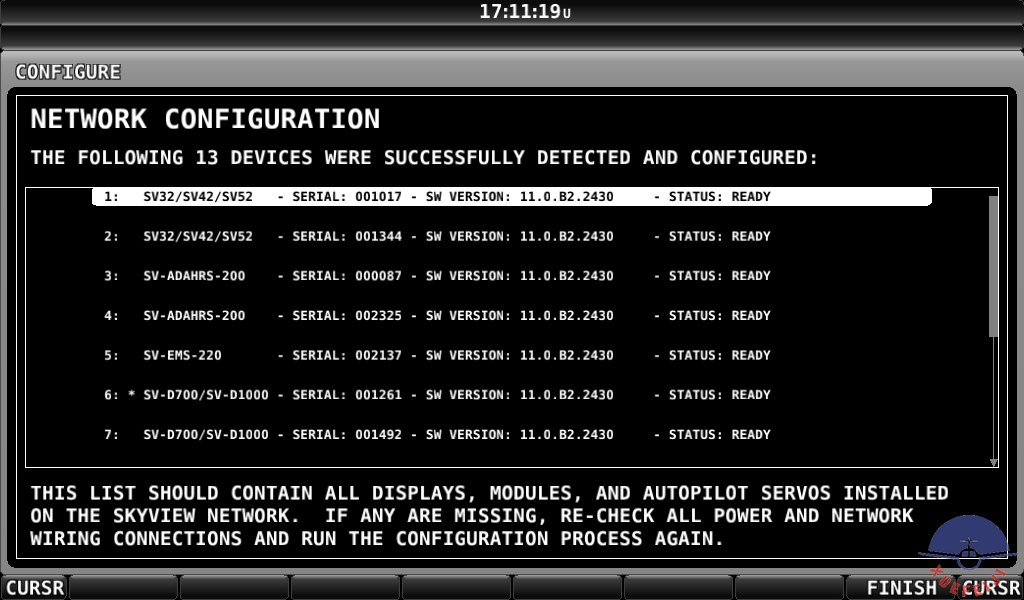

3. Press DETECT. A successful network configuration yields the screen in Figure 34 (depending on the units installed, your SkyView system’s network devices will look different and display different Software versions).

4. Press FINISH to close the screen and return to the Network Setup Menu

配置SkyView网络的操作步骤如下:

1. 按按钮7+8进入设置菜单。

2. 导航到配置…页面(设置菜单> SYSTEM SETUP > SKYVIEW NETWORK SETUP > CONFIGURE…)

3.按检测。一个成功的网络配置将产生如图34所示的屏幕(取决于所安装的单元,您的SkyView系统的网络设备将看起来不同,并显示不同的软件版本)。

4. 按FINISH关闭屏幕并返回网络设置菜单

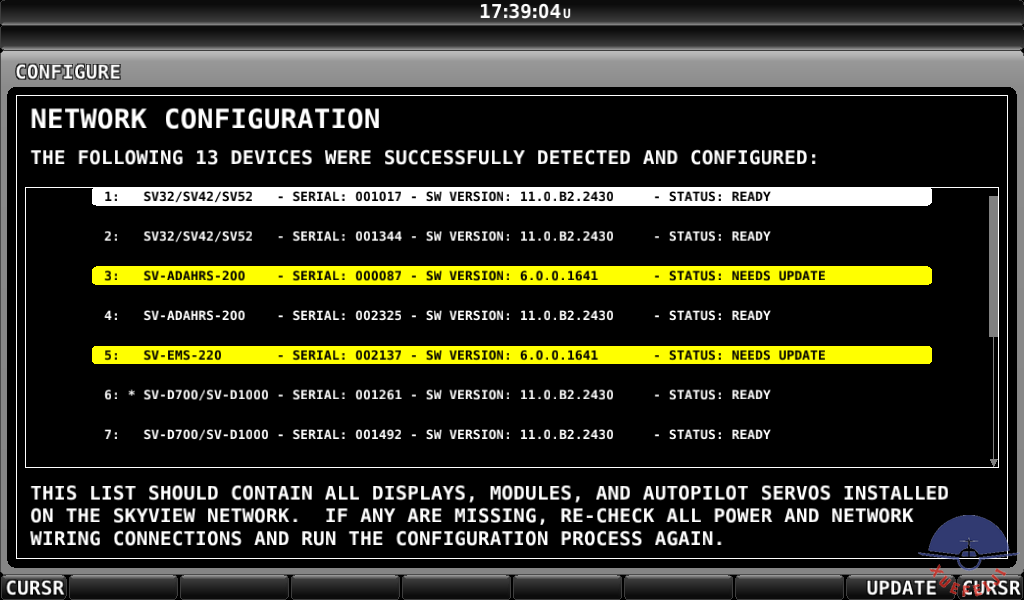

下图黄色的设备为需要更新

2
