    管路接头孔上的这个金属丝有什么用,脱出来了怎么办?
    3812
    0

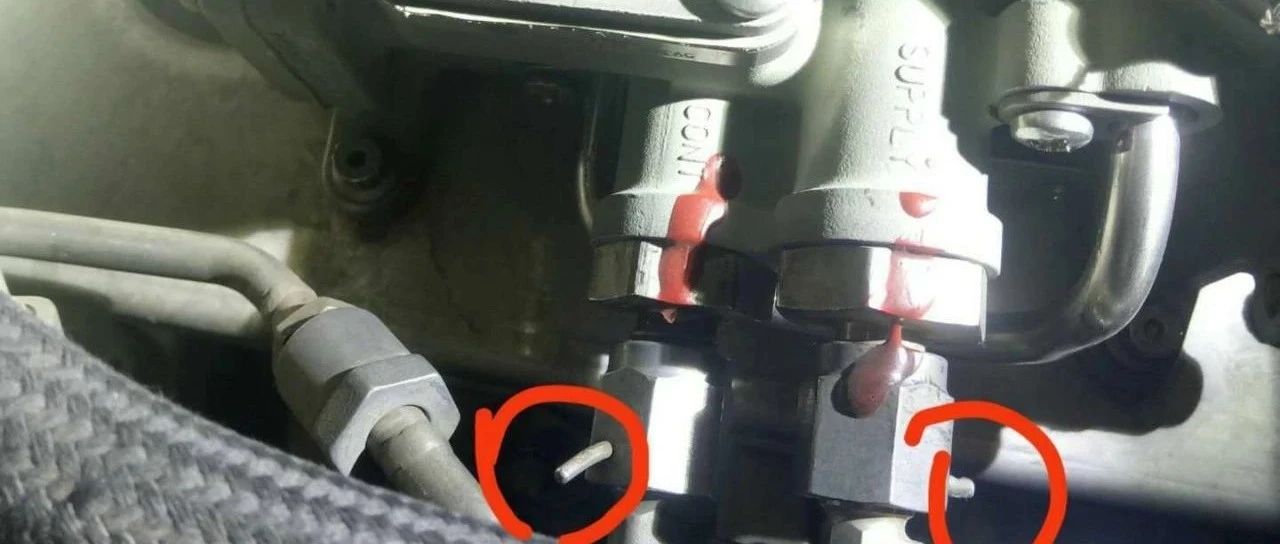

    如下图,发动机高压级调节器上的两根引气管路接头:

    管接头小孔里的这个金属丝凸起出来了,正常吗?

    查看IPC 36-11-51-02A,这两根管子件号为:332A2350-9和332A2350-4

    可以看出这个金属丝为WIRE-SWIVEL CONN,件号J1325P04

    这个金属丝(销)的作用是将管接头螺母保持在管子上用的,如果完全出来了螺母就会从管子上掉下来。在螺母的内部和管的外部,有一个槽绕管路一圈,管路上有凸台抵住不让螺帽缩出来。

    销子或固定金属丝从螺母上的小孔被推入并围绕管的圆周弯曲。


    安装图可参考 ESM - TASK 72-56-01-300-017

    Figure 902 - Replacement of the coupling nut and the retaining ring

    其中并没有给出具体安装步骤,而是给出了安装图。

    厂家给出的安装步骤如下,其实就是砸进去:
    1. Remove the tubing assembly from the airplane.

     - Clamp the nut in a vise with the pin hole up.

     - Insert the tube into the nut, aligning the mating fitting so the wire slides into the groves.

    - Tap the pin into the nut with a hammer and pin punch (the pin will bend and secure the nut to the fitting) until the pin is below the nut surface. If the original pin is reinserted, it may have to be rotated with pliers to facilitate reinstallation.

    - After pin insertion, check to ensure the nut rotates freely on the elbow.

    2. Reinstall the tube assembly in the airplane.

    如果保持金属丝/销子完全掉出来了,管子是不可用的。因为如果没有保持金属丝/销子,螺母将无法保持在管子上。

    航线上碰到这种情况,可以根据保持金属丝/销子脱出多少和松动情况,判断是否要立即更换管路,还是后续择机安排更换;或者拆下管子,尝试看能否将保持金属丝/销子再砸进去。
