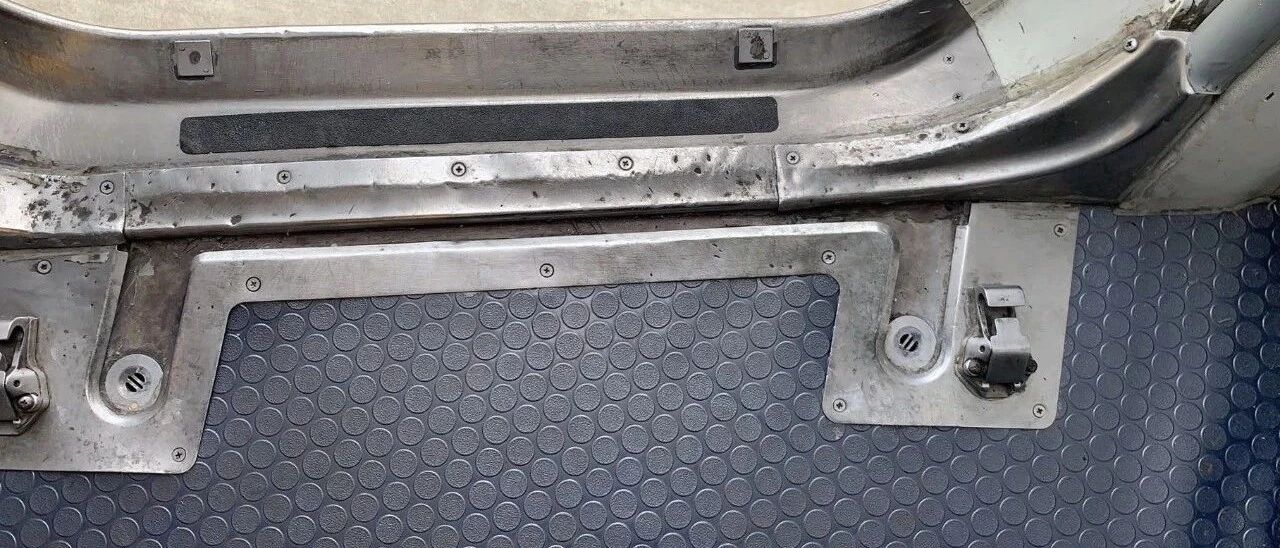

门槛翘起的缺陷遇到几次了,底座的件号和安装步骤在IPC和AMM没有,做个备忘,仅供参考。
咨询波音,该“底座拖把”是一个Blind-Insert,件号是SL618-3CM,安装需要使用封胶BMS5-28/92/123(波音规范号) ,比如EC-2216 B/A(厂家件号,符合BMS5-92), 安装步骤参考BAC5583(文件获取方式在文末)。
According to the Boeing DWG 147A5810 Sheet 137, the missed part is a Blind-Insert in the floor panel rather than the nutplate – see P50 in 147A5810 Sheet 137. The ECODE 5107 has been assigned to this point P50. Boeing DWG 140A1005 Sheet 1 Page 7 provide the detail explanation for ECODE 5107 – the part number for this insert is ‘SL618-3CM’. Please refer to BAC5583 to install and cure the Insert - SL618-3CM.
文件BAC5583的提取方式:
1、链接:
https://pan.baidu.com/s/1CYwKq43ydUFp9VEuOGenuA
提取码:8slt
